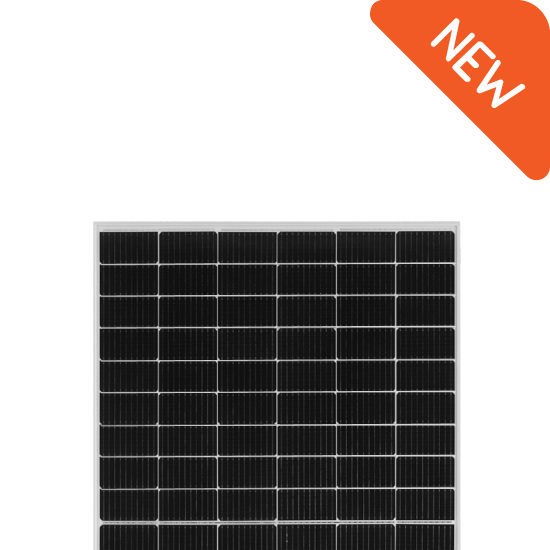

525-540Wp Bifacial Solar Module

          Higher module wattage

test(图1)   · 182 mm wafer + 144 cell + PERC technology

   · Module front side power up to 540W , 20.80% more energy yield in the lifetime


          Lower BOS cost and LCOE

  ·  LCOE reduction because of higher energy yield and lower system costtest(图2)

  ·  Compatible with mainstream trackers


           Enhanced reliability
test(图3)  ·  lower degradation LID / LeTID mitigation

  ·  Excellent hot spot temperature and Better shading tolerance


Product Specifications


Cell Type182 * 91 mm Mono
Cell Orientation144 (6×24)
Dimensions2279 × 1133 × 35 mm
Maximum Power(Pmax)525W-540W
Module Efficiency STC(%)20.30% -20.80%
Junction BoxIP68 Rated
