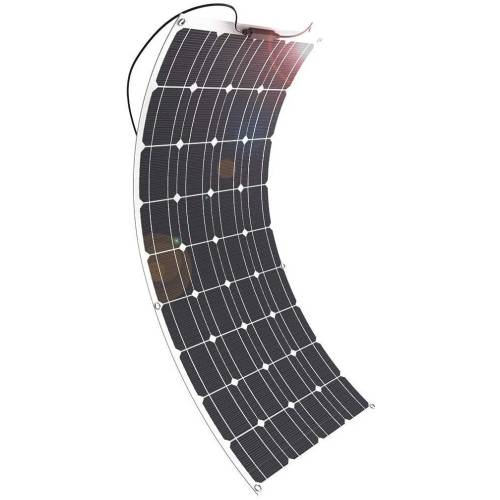

310W Flexible Frameless Mono Solar Panel 60cells

          Flexible module

· Through replacement of glass and frame 70%+weight less than conventional PV panels

· Combines a unique, patented material with other industry-leading technologies to produce a flexible crystalline-silicon panel that can be installed on a curved surfaces.



          Durable & Installation-friendly

· Maximum load(2400 Pascal), special materials and strict quality control ensure panel long life span.

· Reduces installation cost by up to 50% through its re-engineered components, ease of handling and shorter installation time.




           Easily transportable & Deployable
· Low weight significantly cuts transportation and freight costs.

· Lightweight, flexibility and customizability changes the way solar is deployed in the market and brings added value to special applications.


Product Specifications



Solar Cell

Monocrystalline silicon(158.75mm)

No.of Cells

60(6*10)

Module Dimensions

1681×1000×2 mm(J-box on front)/ 1653×1000×2 mm

Weight

5.0KG( J-box on Front) /4.8KG

Backsheet

White

J-Box

IP68 rated

Output cable

Photovoltaic technology cable 4.0 mm 2 , (+)150 / (-)450 mm
